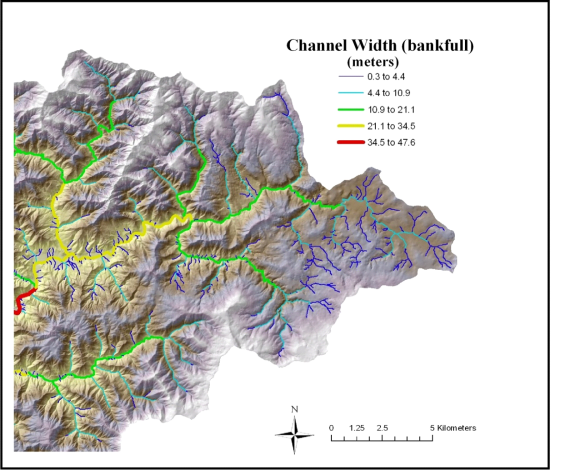

Channel Width

Field name = [WDITH_M]
In meters. Statistical regressions are used to predict bankfull channel width. Bankfull channel width is modeled as a power function of mean annual flow, drainage area and or precipitation. Channel bankfull width is used in numerous applications in NetMap, including in the prediction of fish habitat.

Precipitation data is from PRISM (http://prism.oregonstate.edu) data on annual precipitation and the use of one or more regression models; refer also to Lorensen et al. (1994) and Clarke et al. (2008).  See NetMap's full online Technical Help.
