6.1 Import Road Layer

Import Road Layer

NetMap Module/Tool: Road Tools

Model Description:

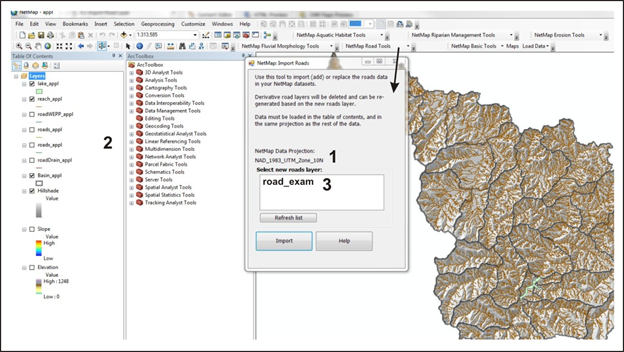

Using this tool, a user can import a new road layer into NetMap and run all of the tools. Note that the road layer must have the correct projection (1), the same as the other NetMap data layers and it must reside in Arc's Table of Contents (3).
