Westslope Cutthroat


NetMap's Watershed Assessment

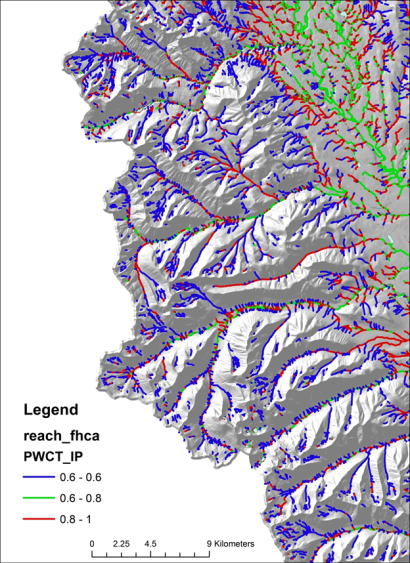

Watershed Attribute: The potential for Westslope Cutthroat habitat (Oncorhynchus clarki lewisi)

Data Types: Line (in channel).

Grid (raster)
Field Name: IP_species

Units: 0 - 1

NetMap Level 1 Module/Tool: Aquatic Habitats/ Create Aquatic Habitats

Model Description:
Parameter Description: The west slope Cutthroat Trout Bayesian Belief Network (BBN) model of Peterson et al. (2008) calculates the probability of a fish population being present and persisting for 20-yr based on a set of physical channel parameters and other land use related watershed attributes. NetMap contains two models (#1) the full BBN that include ten state variables and (#2) an intrinsic potential (IP) version that includes three physical parameters (channel gradient, width and stream temperature). The one included in the Packaged Watershed Assessments is the IP version.
